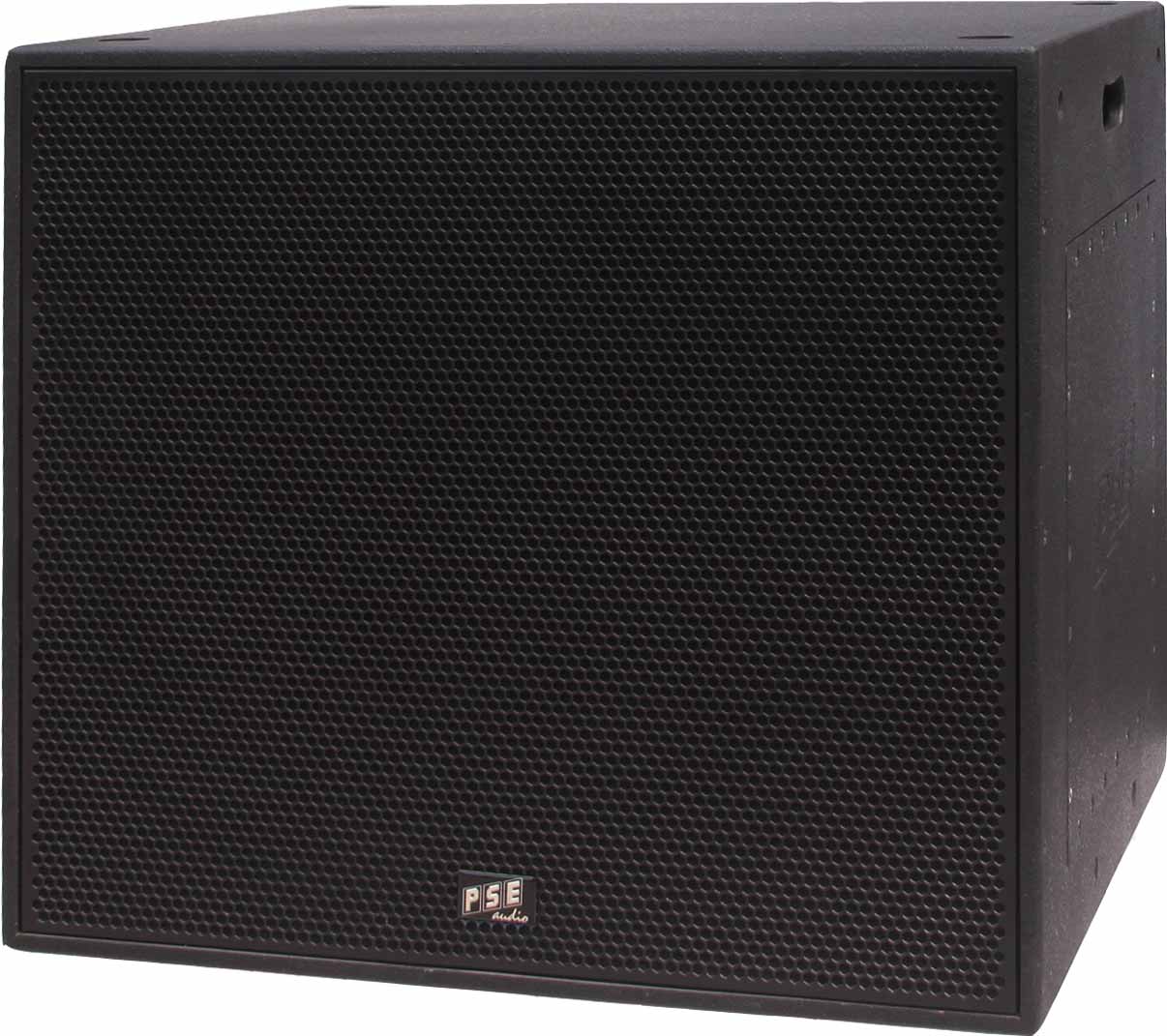

basssub SB-215

subwoofer

SB-215

basssub SB-215          basssub SB-215

SB-215 general description

Features SB-215

  • 2x15" neodymium speaker (4"/100mm voice coil)
  • bandpass design
  • 8 x M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white






basssub SB-215

SB-215 specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 2000W / 6000W*
available frequency response** 32Hz-180Hz
max. sound pressure level*** 133dB
LF-transducer rated size 2x15"
LF-transducer voice coil diameter 4"/100mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 800/700/640
weight 62.9kg

* peak 10ms, with TD-8000 amplifier and SB-215 max controller setup
** -10dB with SB-215 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and SB-215 SPL controller setup
