linearray VT-12

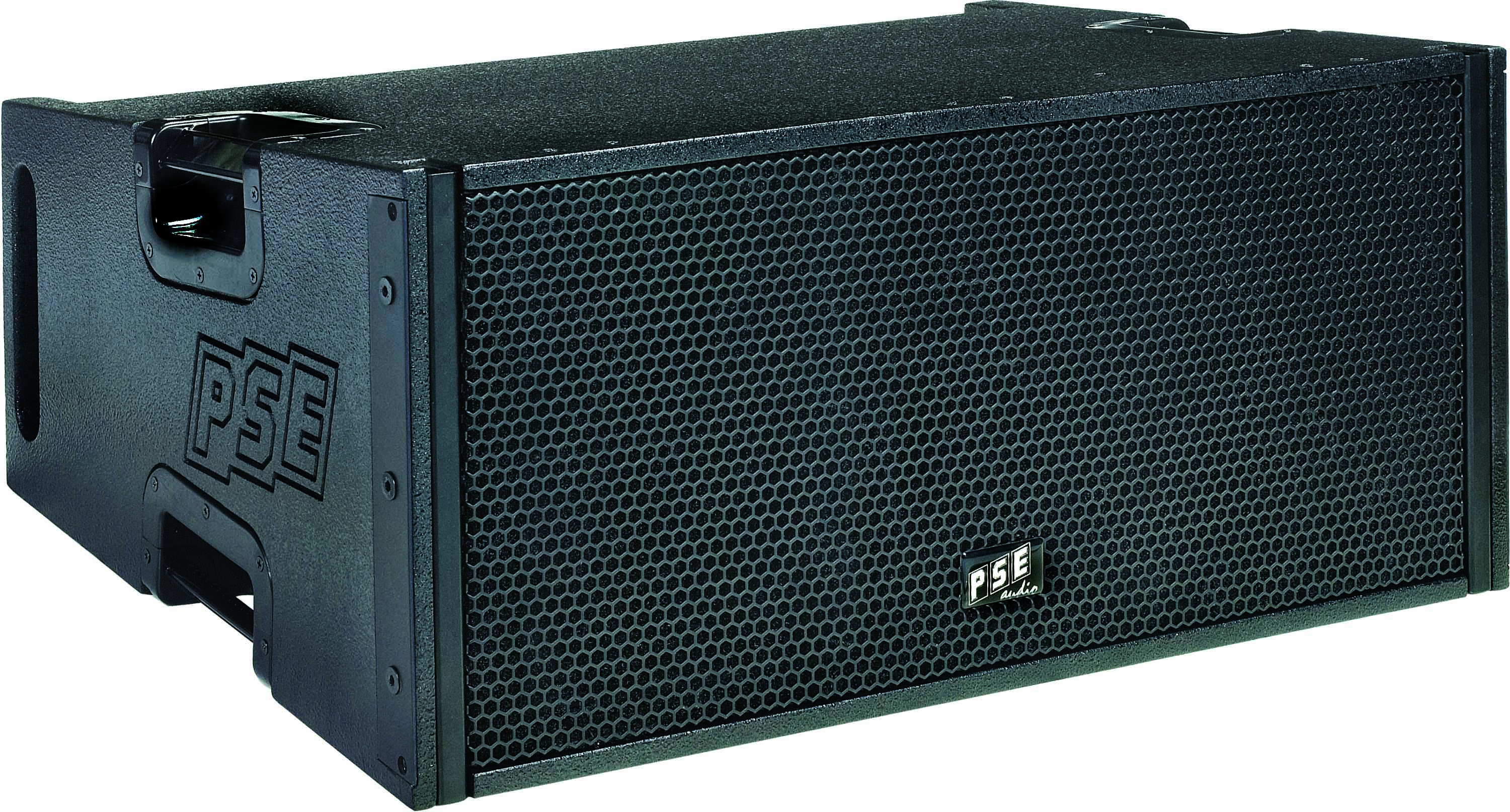

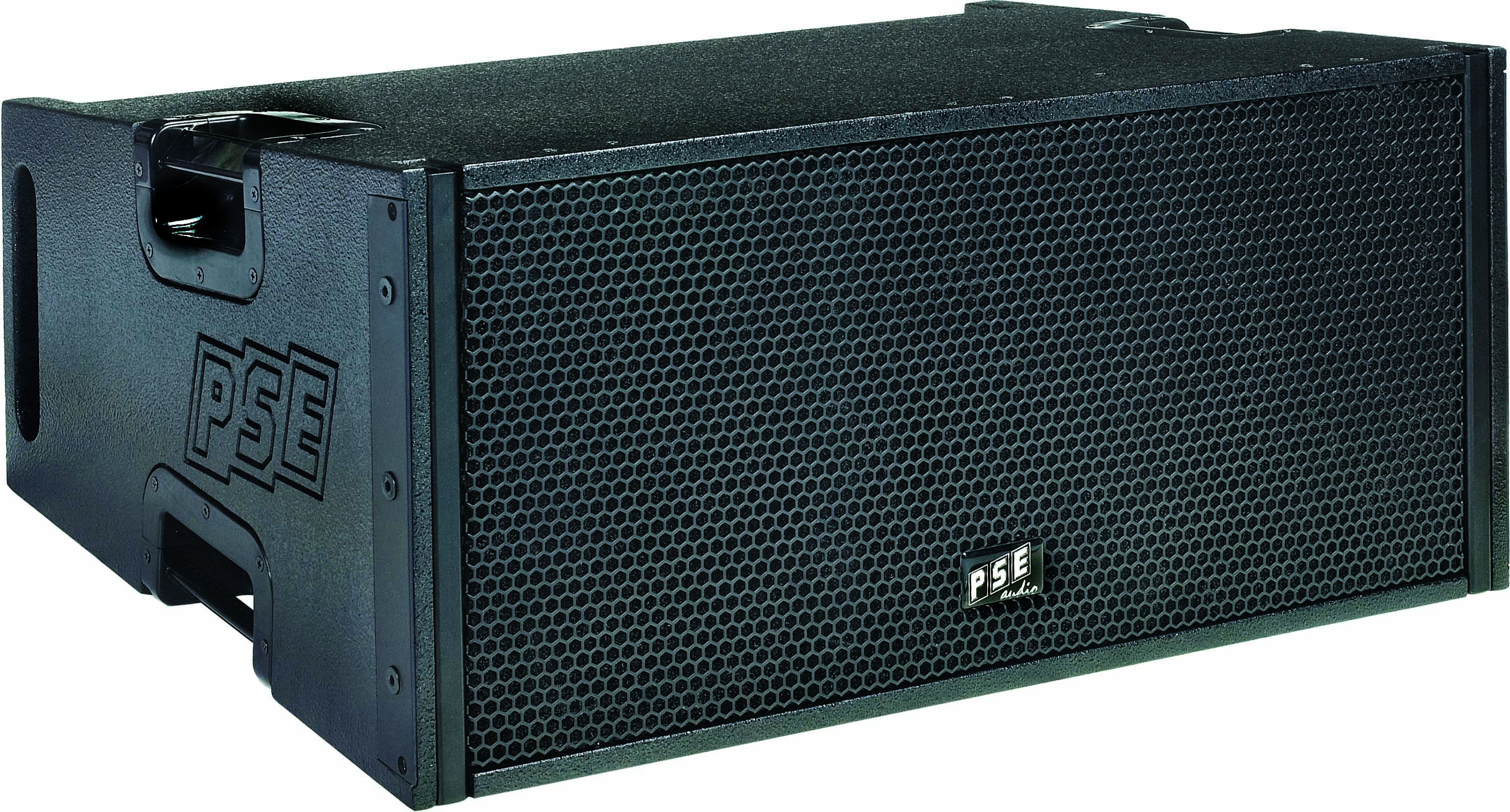

Line Array speaker cabinet

VT-12

linearray VT-12          linearray VT-12

V-tec VT-12 general description

Features V-tec VT-12

  • 2x12" neodymium speaker (3"voice coil)
  • 2x3" (75mm) neodymium compression driver
  • high frequency planar wave guide horn
  • wave guide horn directivity h90°/v8°
  • constant horn directivity
  • curving angles 0°-8° in 1° steps
  • 3-point rigging structure
  • 2 Neutrik speakon 4-pin
  • speaker signal link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing 15mm,18mm, 28mm plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Appliance V-tec VT-12

  • line array unit for mobile and touring PA
  • line array unit for fix installation

Application V-tec VT-12

  • live events, live entertainment
  • stadium broadcasting,
  • discotheque and mobile disco event
  • meeting halls broadcast system

extended system components

  • VB-52* subwoofer (2x15")
  • VB-218pro subwoofer (2x18")
  • VB-218 subwoofer (2x18")
    *with rigging hardware

linearray VT-12

linearray VT-12

linearray VT-12

linearray VT-12

linearray VT-12

linearray VT-12

V-tec VT-12 specification
rated impedance (optional) 16Ω (8Ω)
operation mode bi-amp
power handling capacity midrange AES/peak* 800W / 2400W*
power handling capacity HF AES/peak* 160W / 480W*
available frequency response** 50Hz-20kHz
max. sound pressure level*** 145dB
directivity (h x v) 90°/8°
midrange-transducer rated size 2x12"
midrange-transducer voice coil diameter 3" (76mm)
midrange-transducer magnet structure neodymium
HF-compression driver rated size (VC) 2x3" (75mm)
HF-compression driver throat diameter 1.4"
HF-compression driver magnet structure neodymium
dimension w/h/d in mm 800/360/560
weight 39.5kg

* peak 10ms, with TD-8000 amplifier and VT-12 max controller setup
** -10dB with VT-12 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VT-12 SPL bi-amp controller setup
****system vertical directivity depends on quantity and curving of VT-12 cabinets

small variety of a wide range for bass cabinet extension
