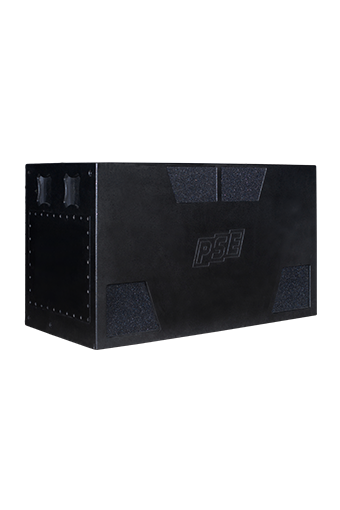

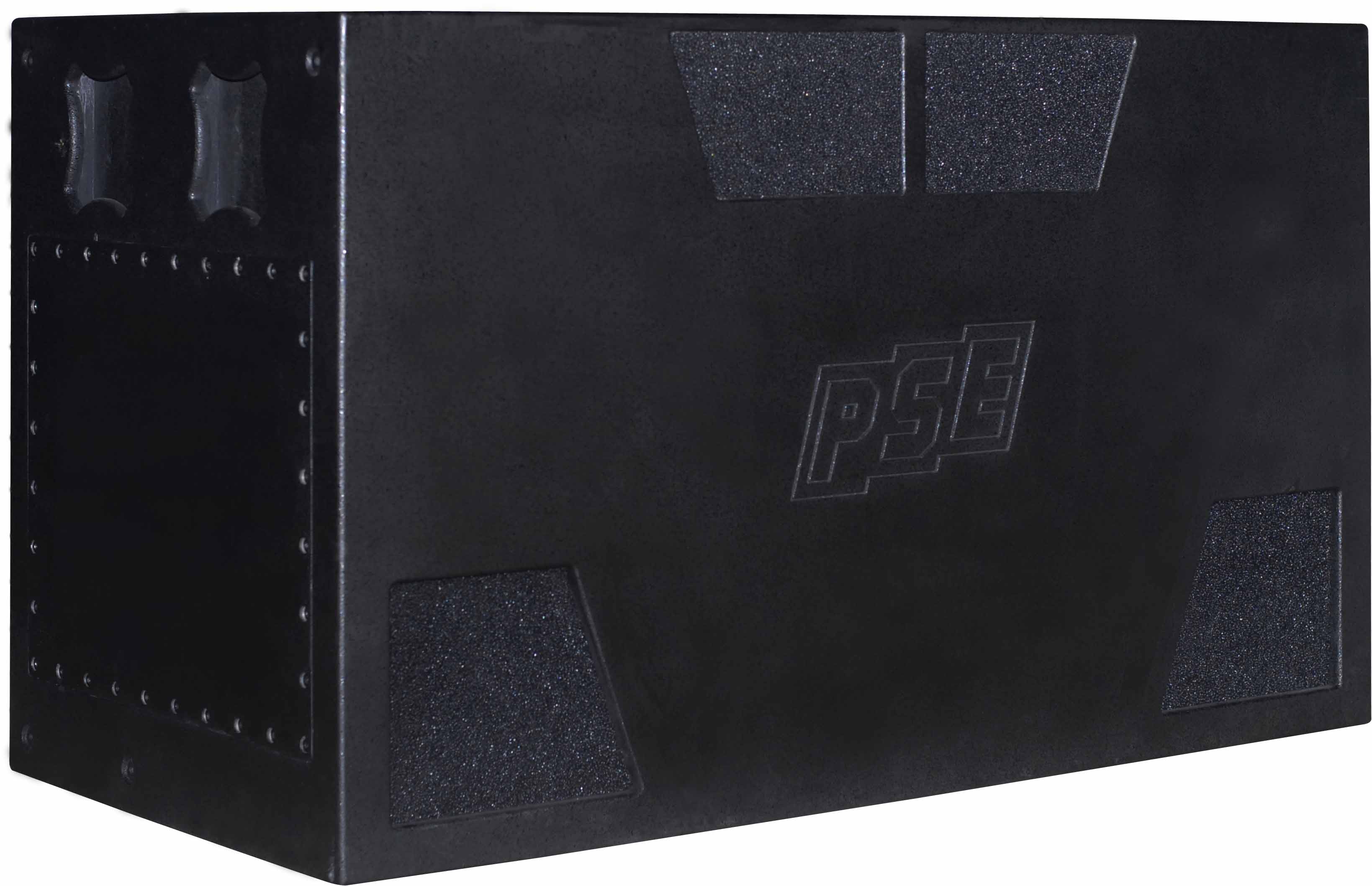

basssub SB-218

subwoofer

SB-218

basssub SB-218          basssub SB-218

SB-218 general description

Features SB-218

  • 2x18" neodymium speaker (5"/125mm voice coil)
  • bandpass design
  • 12 x M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white




basssub SB-218

SB-218 specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 3000W / 9000W*
available frequency response** 28Hz-120Hz
max. sound pressure level*** 137dB
LF-transducer rated size 2x18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 1200/700/600
weight 93kg

* peak 10ms, with TD-8000 amplifier and SB-218 max controller setup
** -10dB with SB-218 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and SB-218 SPL controller setup
