C-42

column series C-42          column series C-42

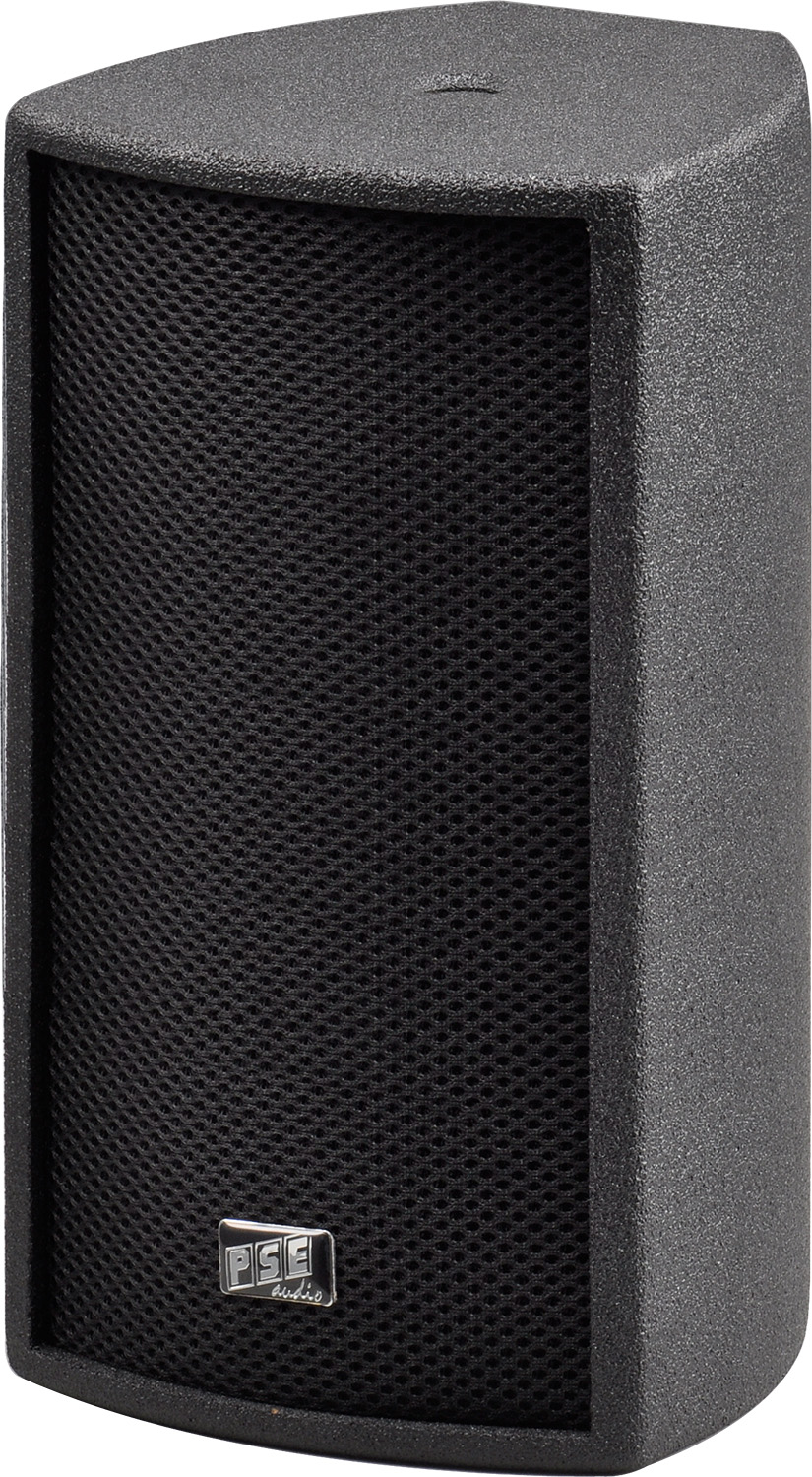

C-42 general description

Features C-42

  • 2 x 4" speaker ferrite (25mm voice coil)
  • 4 M8 mounting points
  • 2 push terminals
  • perforated steel front grill powder coated
  • acoustic textile 2mm (on top)
  • wood housing class A MDF 10mm
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Application C-42

  • bars & coffee shops
  • shops
  • meeting room
  • home cinema
  • home entertainment HiFi

Appliance C-42

  • high-mid unit for fix installation
  • background music
  • delay line
  • multimedia sound system
  • surround cabinet



column series C-42

C-42 specification
rated impedance (optional) 8Ω (16Ω)
operation mode passive
power handling capacity passive AES/peak* 100W / 300W*
available frequency response** 120Hz-18kHz
max. sound pressure level*** 119dB
directivity (h x v) 90° x 60°
LF-transducer rated size 2 x 4"
LF-transducer voice coil diameter 26mm/1"
LF-transducer magnet structure ferrite
dimension h/w/d in mm 290/145/150
weight 3.7kg

* peak 10ms, with TD-8000 amplifier and C-42 max controller setup
** -10dB with C-42FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and C-42SPL controller setup

recommended subwoofer

Bass B-802
B-802
