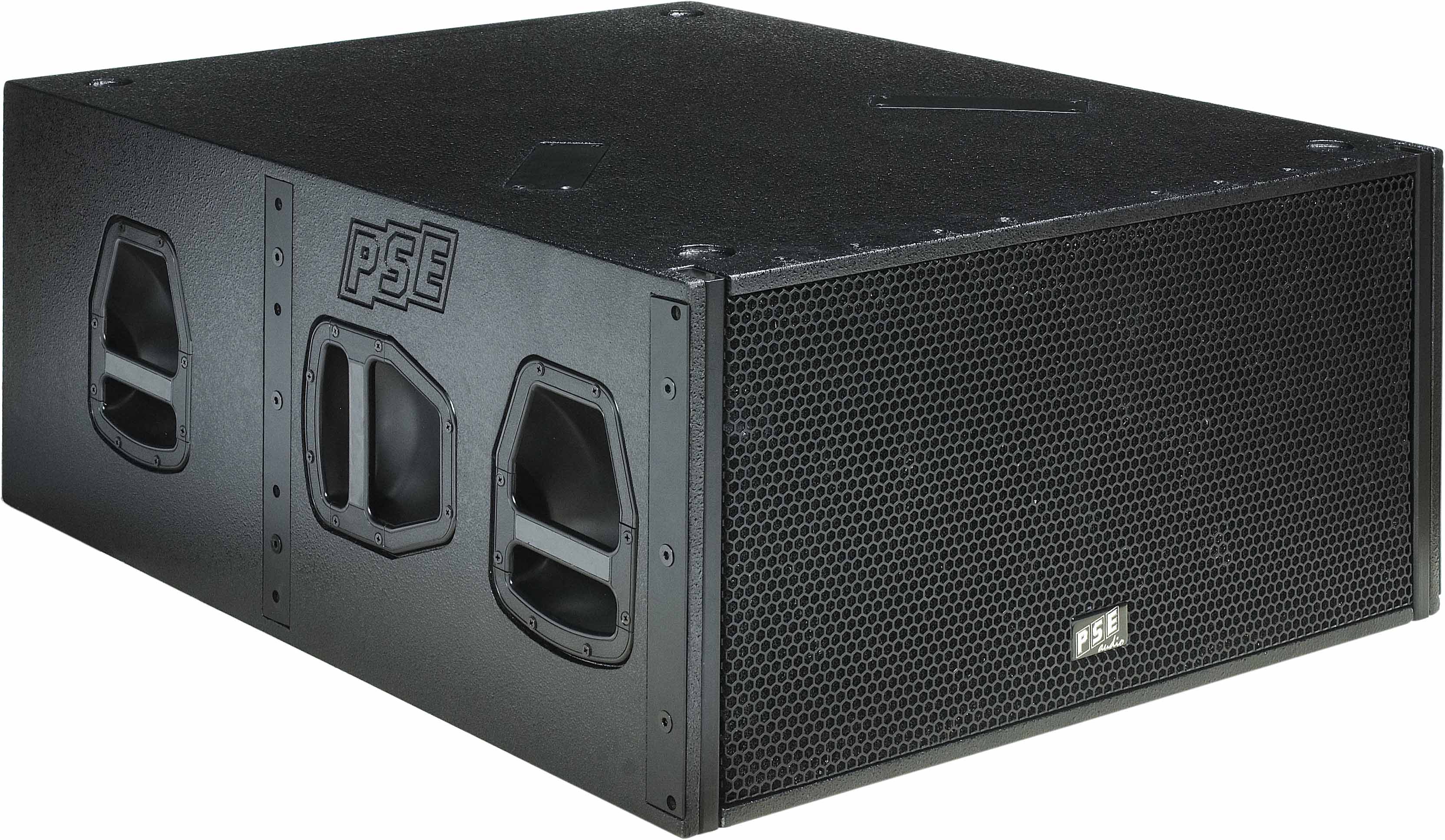

basssub VB-52

subwoofer

VB-52

basssub VB-52          basssub VB-52

VB-52 general description

Features VB-52

  • 2 x 15" neodymium speaker (5" voice coil)
  • bass reflex design
  • rigging (flying) hardware integrated
  • 4 steering caster on the back side
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional without wheels
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster




basssub VB-52



for stacking and rigging:
H: system 800
V: system 400

  • extremely compact and truck space saving design
  • 2 dimension optimized for Euro-pallet norm truck
  • upright loading: 6 x 40cm = 240cm width
  • flat loading: 3 x 80cm = 240cm width
  • 3 rows upright stacked = 240cm width / 240cm height
  • flat and upright loading can be combined
  • 1 x width (80cm) = 2 x height (40cm)
  • 1.125m (incl. caster) loading length up to 18 cabinets
  • 1.125m loading length up to 54,000W /162,000W peak
VB-52 specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 3000W / 9000W*
available frequency response** 32Hz-200Hz
max. sound pressure level*** 138dB
LF-transducer rated size 2x15"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 800/400/1000
weight 58kg

* peak 10ms, with TD-8000 amplifier and VB-52 max controller setup
** -10dB with VB-52 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and VB-52 SPL controller setup
