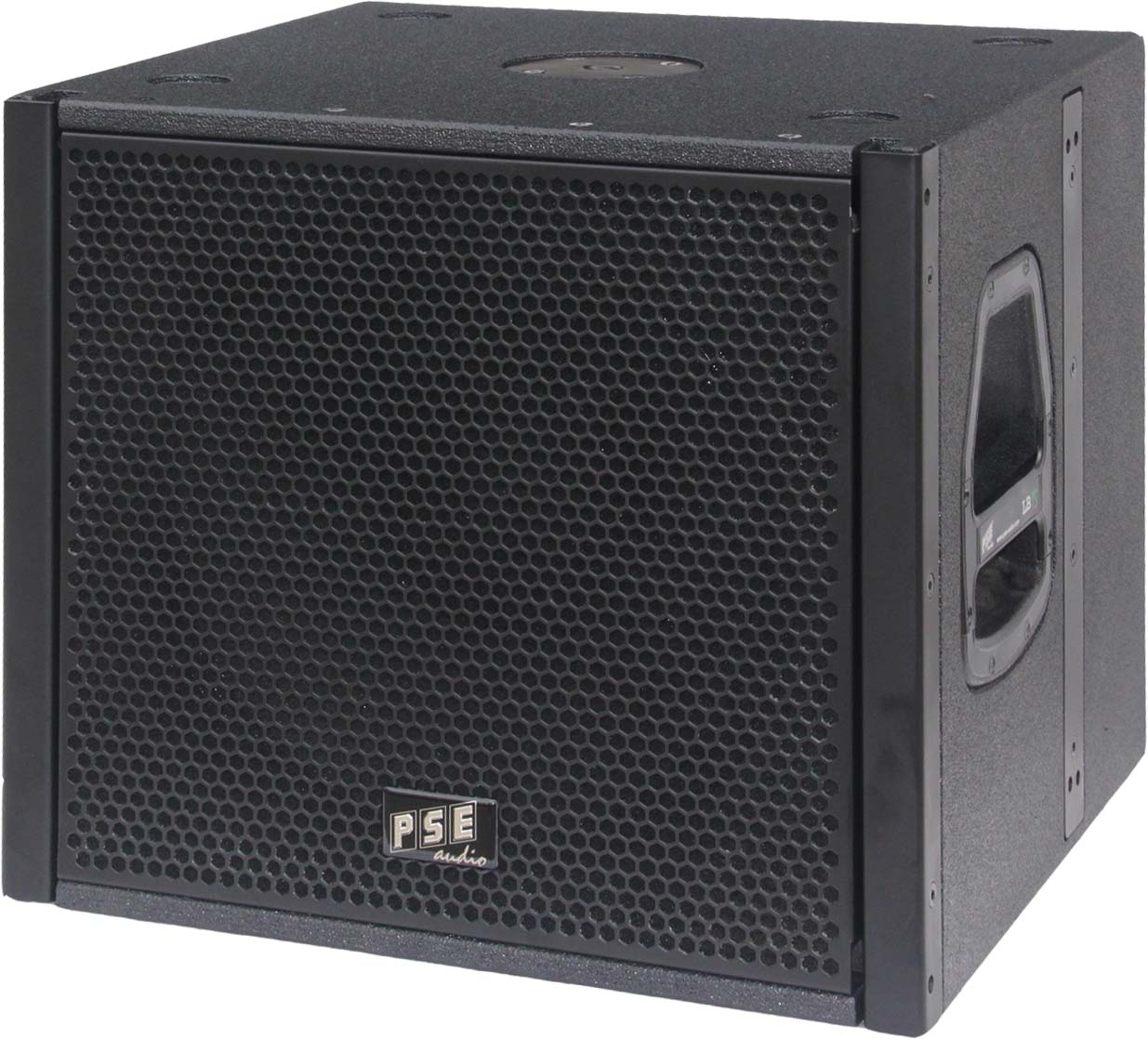

basssub LB-15

subwoofer

LB-15

basssub LB-15          basssub LB-15

LB-15 general description

Features LB-15

  • 15" neodymium speaker (4"/100mm voice coil)
  • bass reflex design
  • rigging (flying) hardware integrated
  • M20 pole mount plate
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white



basssub LB-15

LB-15 specification
rated impedance (optional) 8Ω (16Ω)
power handling capacity AES/peak* 1000W / 3000W*
available frequency response** 40Hz-250Hz
max. sound pressure level*** 132dB
LF-transducer rated size 15"
LF-transducer voice coil diameter 4"/100mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 480/430/450
weight 21.3kg

* peak 10ms, with TD-8000 amplifier and LB-15 max controller setup
** -10dB with LB-15 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and LB-15 SPL controller setup
